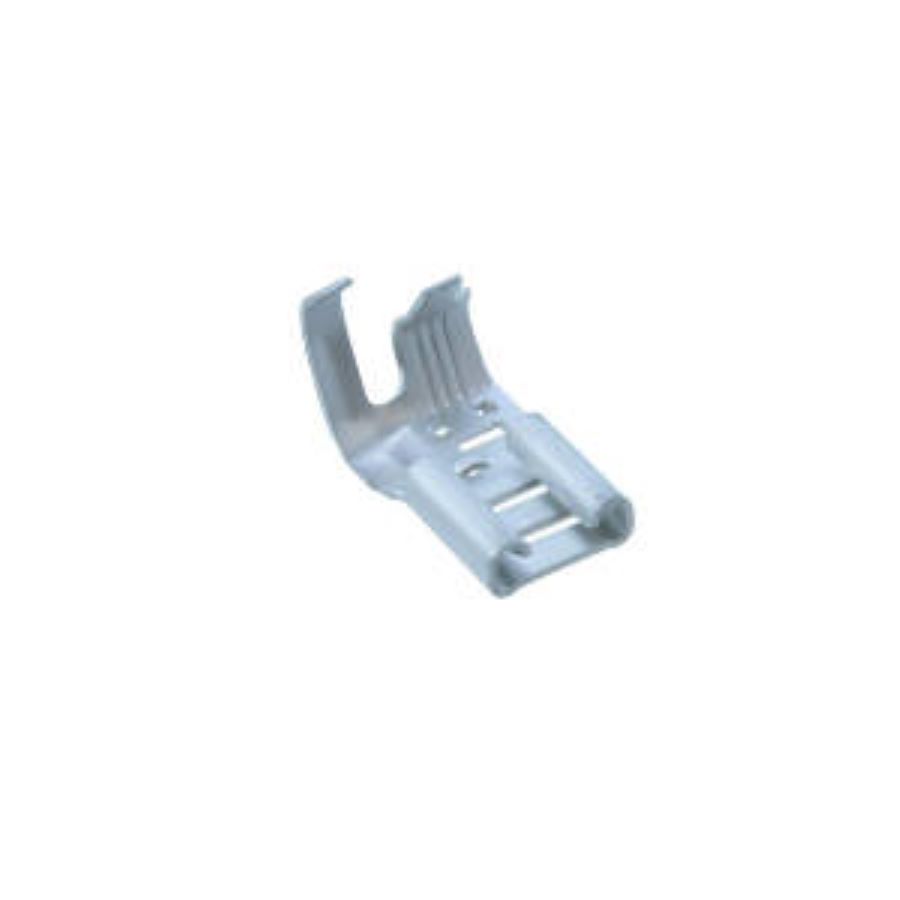

41802
Manufacturer:
TE Connectivity
Mfr.Part #:
41802
Datasheet:
Description:
Terminals Free Hanging 18 AWG Female
| Parameter | Value |
|---|---|
| Length | 17 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Depth | 8.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Flag Tab |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 18 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 5.334 mm |
| Body Plating | Tin |
| Insulated Wire Support | No |
| Mating Tab Width | 6.35 mm |
| Tab Length | 7.75 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 12360
Distributors
pcbx
pcbxUnit Price$0.58090
Ext.Price$0.58090
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58090 | $0.58090 |
| 10 | $0.29045 | $2.90450 |
| 50 | $0.22342 | $11.17100 |
| 100 | $0.17186 | $17.18600 |
| 500 | $0.13220 | $66.10000 |
| 1000 | $0.10169 | $101.69000 |
| 3000 | $0.07822 | $234.66000 |
| 5000 | $0.07374 | $368.70000 |
| 10000 | $0.06951 | $695.10000 |
